Product Description
Main Functions
Anti-tailgating Function
Effectively prevent unauthorized follow-up entry.
Bidirectional Passage
Can set free in / free out, or controlled access only.
Automatic Reset
Gate arm automatically closes after delay when no passage.
Anti-collision
Swing arm will bounce back when blocked by people or objects to avoid damage.
Power Off Automatically Open
Barrier opens freely during power failure to meet fire evacuation requirements.
Counting Function
Record the number of people entering and exiting.
Technical Parameters & Features
| Bridge Type Sloped Swing Gate Technical Parameters | |
| Overall size | 1200(L) × 280(W) × 980(H)mm |
| Single channel width | 550 - 900mm |
| Material | 304 stainless steel, 1.2mm thick plate |
| Swing door panel | acrylic or stainless steel optional |
| Power input | AC220V ±10% 50Hz |
| Working voltage | DC24V brushless motor |
| Standby current | 120mA |
| Maximum working current | 2.5A |
| Opening speed | 0.4 - 0.6 seconds adjustable |
| Passage rate | 40 - 45 people per minute |
| Auto reset delay | 2~10 seconds adjustable |
| Working temperature | -25℃ ~ +60℃ |
| Protection grade | IP44 (indoor standard; IP65 rainproof type available for outdoor) |
| Working mode | bidirectional controlled / free in controlled out / free out controlled in Anti-smash & anti-collision built-in |

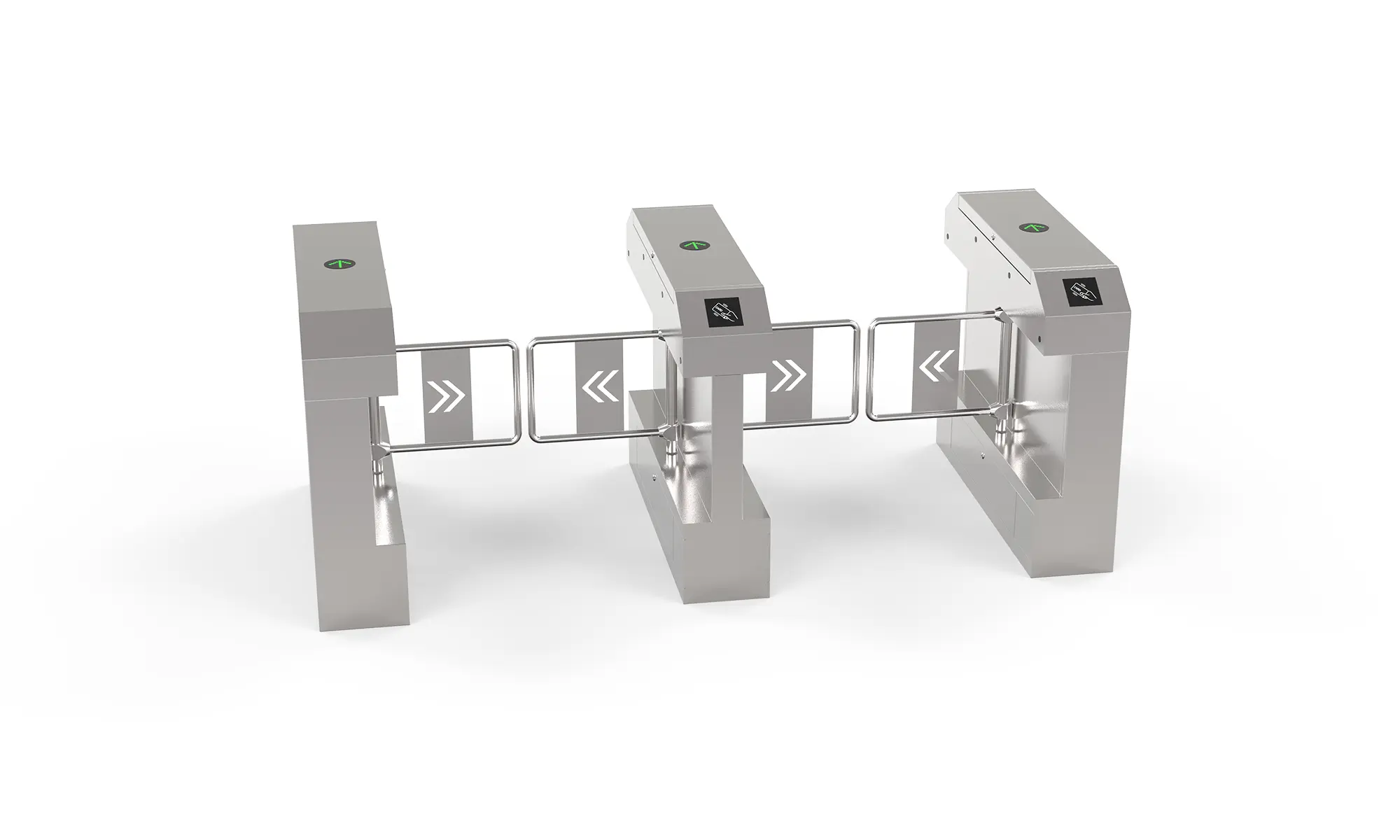

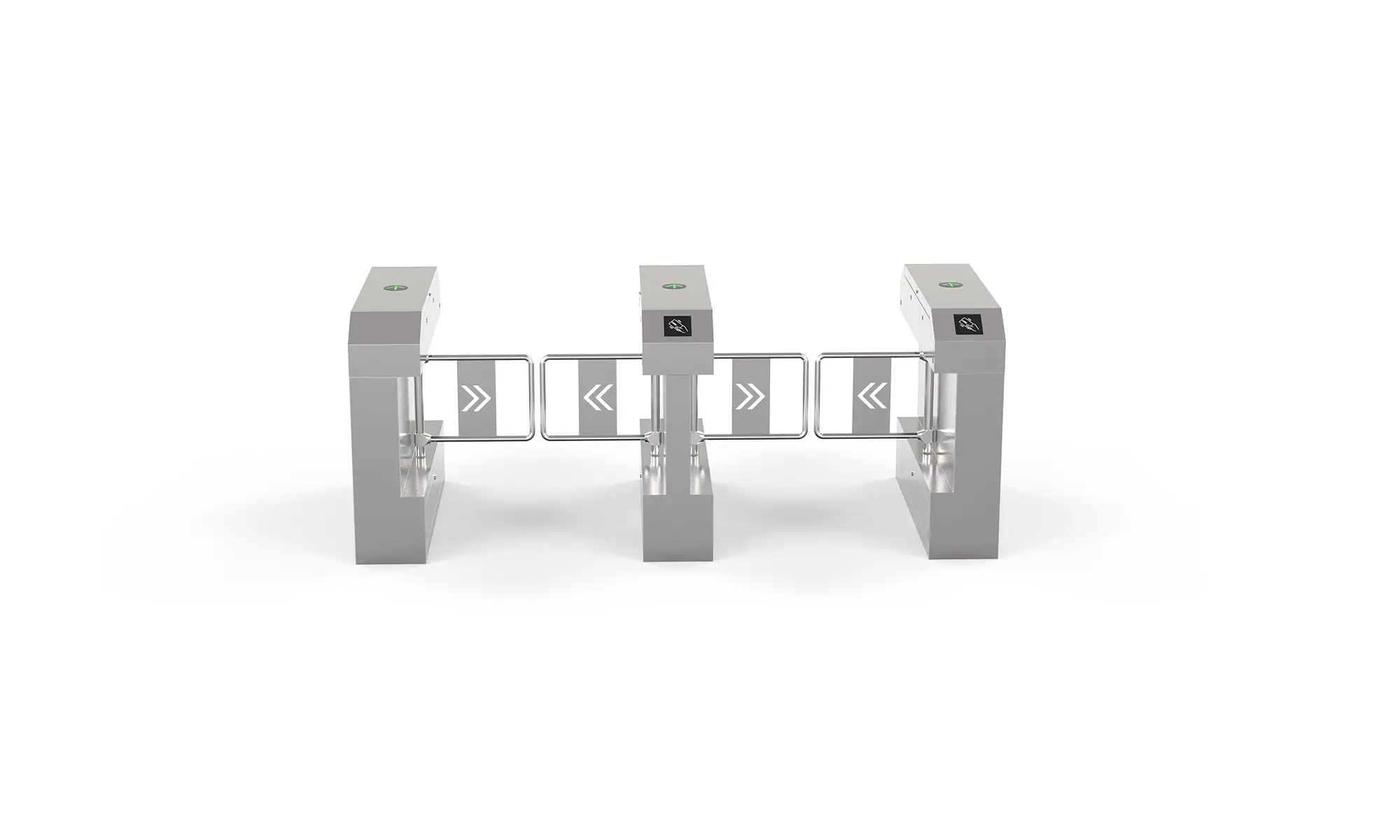

Installation
Frequently Asked Questions
Q: How does the barrier behave during an emergency power failure?
The swing barrier is designed with an automatic power-off open function. In the event of a power outage, the swing arm opens freely to allow barrier-free transit and comply with emergency fire evacuation standards.
Q: Can the single channel width accommodate wheelchairs or large luggage?
Yes, the single passage width is adjustable between 550mm and 900mm, making it suitable for standard pedestrian access as well as wide-lane requirements such as wheelchairs, bicycles, and luggage transit.
Q: Can this swing turnstile gate be installed outdoors?
While the standard configuration features an IP44 protection grade for indoor application, an IP65 rainproof version is optionally available for outdoor installations alongside its weather-resistant 304 stainless steel housing.
Q: How does the anti-collision mechanism protect users and the device?
If the swing arm encounters resistance from people or objects during operation, the built-in anti-collision sensor triggers the arm to bounce back automatically, avoiding physical injury and preventing mechanical damage.
Q: What is the pedestrian throughput rate per minute?
With an opening speed adjustable between 0.4 and 0.6 seconds, the gate facilitates an efficient passage rate of 40 to 45 people per minute, ensuring smooth traffic flow during peak hours.
Q: What access control modes are supported by this turnstile?
The gate supports bidirectional operation modes including bidirectional controlled passage, free entry with controlled exit, and free exit with controlled entry, along with integrated counting and anti-tailgating monitoring.
