Durable Office Building Entrance Attendance Security Access Control Turnstiles Gate Swing Barrier Speed Gate Manufacturers, Supplier

1 / 5

Durable Office Building Entrance Attendance Security Access Control Turnstiles Gate Swing Barrier Speed Gate Manufacturers, Supplier

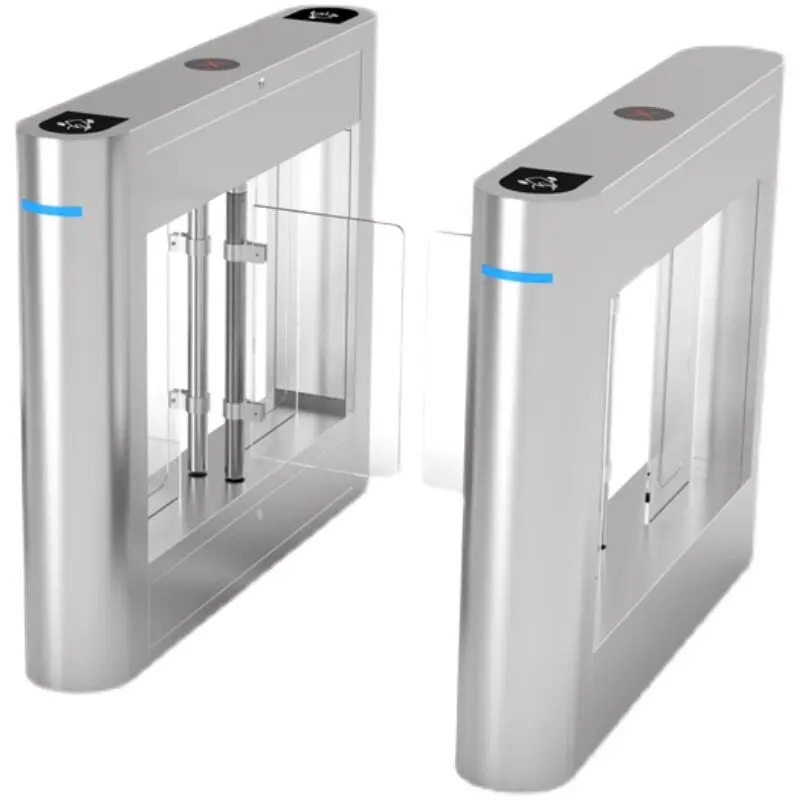

Curved mini swing gate adopts an arc rounded cabinet design, compact and exquisite. It occupies a small area, the gate wings swing left and right, belongs to lightweight pedestrian turnstile, suitable for narrow passages, office lobbies, shopping malls, company halls, high-end venues where space is limited.

Send Inquiry

Product Description

Main Features

Bidirectional access control, configurable for inbound/outbound modes.

Automatic reset: gate closes automatically after set time if no one passes.

Anti-collision function: the swing arm rebounds when blocked, no damage to people and equipment.

Anti-tailgating, only one person can pass after one valid authorization.

Power failure automatic open, meet fire evacuation standards.

Can connect face recognition, IC card, QR code reader, access control system.

Built-in people counting function.

Full English Technical Parameters

Technical Parameters

Overall size	1200(L)×260(W)×980(H)mm
Channel width	500–580mm optional
Main cabinet	304 stainless steel, 1.2mm thickness
Swing panel	stainless steel / acrylic optional
Input power	AC220V ±10% 50Hz

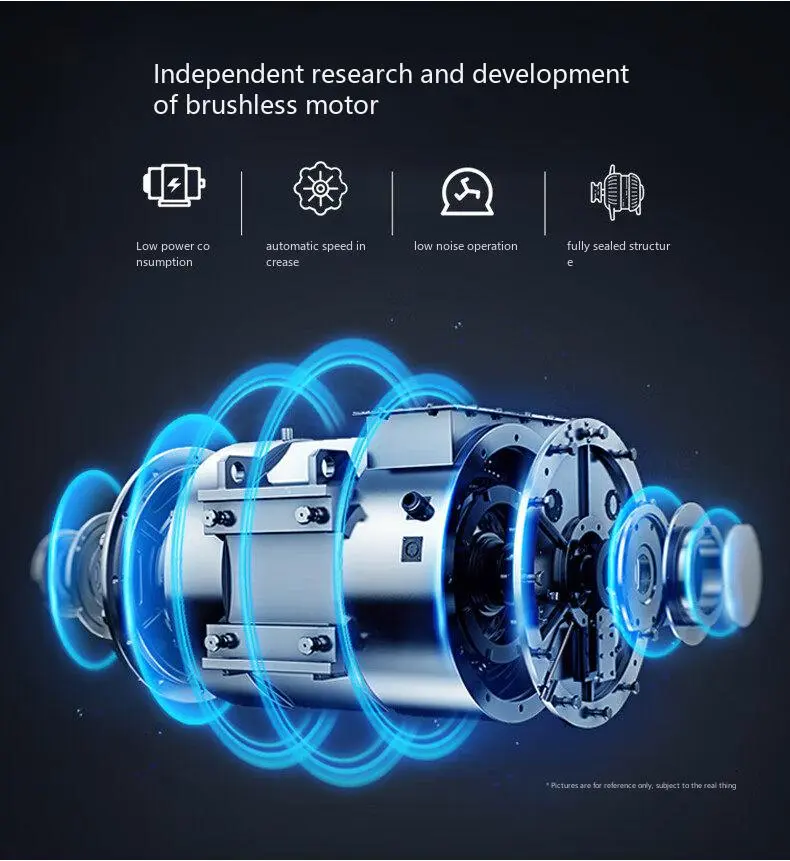

Driving motor	DC24V brushless motor
Standby current	100mA
Peak working current	2A
Gate opening time	0.4–0.8s adjustable
Passage capacity	35–42 persons per minute
Auto reset delay	2–10 seconds adjustable
Working temperature	-25℃ ~ +60℃
Protection grade	IP44 (indoor use; IP65 waterproof version optional for outdoor)
Working modes	two-way controlled, free-in controlled-out, controlled-in free-out
Built-in	anti-smash, anti-collision, power-off open function

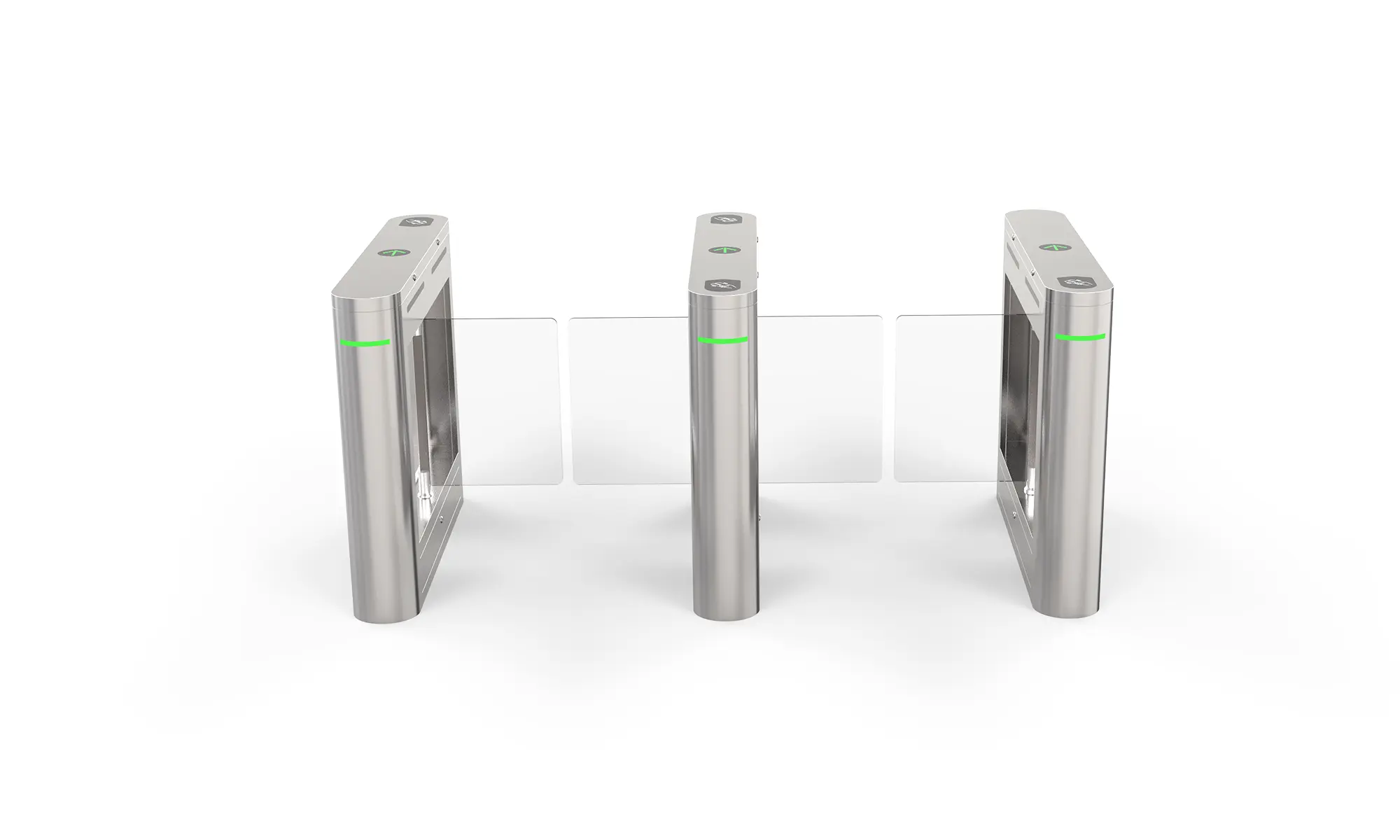

Installation

No Battery Emergency Swing Turnstile

Anti-Collision Auto-Reset Pedestrian Gate
High Precision 720 Pulse Digital Sensor
Silent Friction-Free Operation
Narrow Passage Mini Swing Barrier
Support Up To 18 Pairs Infrared

Descriptions

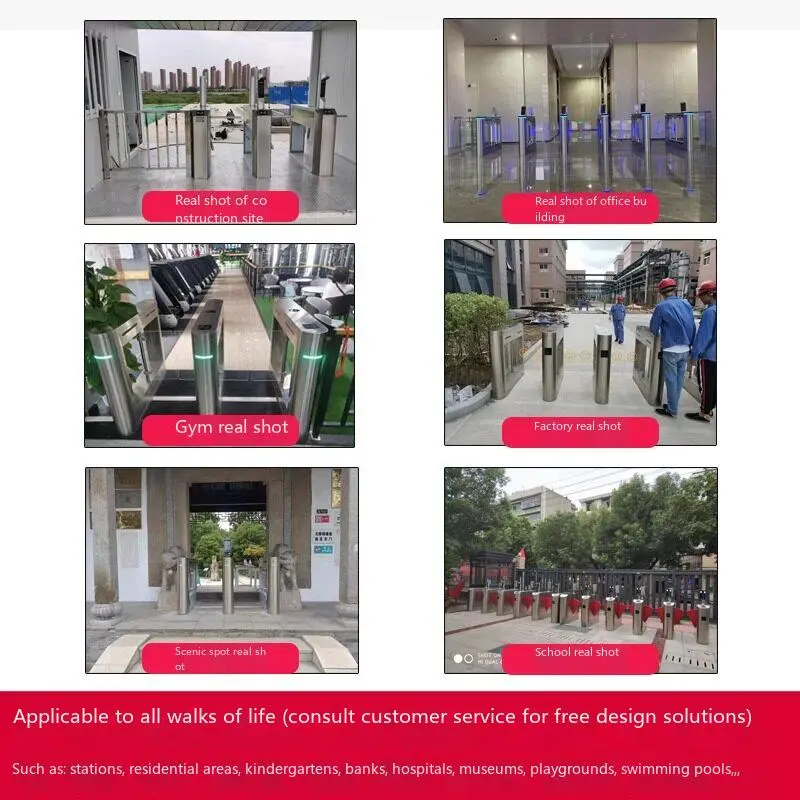

Solve traditional turnstile flaws: anti-pinch, impact protection, no aging battery risks. Max 60 people/min throughput, power-on self-test & fault alarm. SUS stainless steel cabinet, wide temperature -25℃~+75℃. For residential, gym, school, office building. Free technical solution support.

Office Building Entrance Attendance Security Access Control Turnstiles Gate Swing Barrier Speed Gate

Mini Pedestrian Swing Turnstile

Intelligent Access Control Barrier Gate
Custom Size & Passage Width
USB On-Site Debugging
Multiple Passage Modes Optional
Global After-Sales Guidance

Descriptions

Compact swing turnstile for narrow entrances, triple safety protection, fast opening, stable long-term use. Support UPS backup power & fire emergency release. Factory R&D manufacturer, small MOQ accepted. Send inquiry to get quotation & installation drawings.

Frequently Asked Questions

Q: Which access control devices can be integrated with this swing turnstile?

The gate offers high compatibility and can easily integrate with face recognition terminals, IC/ID card readers, QR code scanners, fingerprint devices, and standard third-party access control systems.

Q: How does the gate respond during a power outage or fire emergency?

The turnstile features an automatic open function upon power failure, creating a clear and unobstructed evacuation lane that strictly complies with fire safety and emergency exit standards.

Q: What mechanisms protect pedestrians and the equipment against collisions?

It features an integrated anti-collision and auto-reset system: when an external impact or obstacle is detected, the swing arm rebounds automatically without damaging internal mechanical components or injuring users.

Q: Can this swing turnstile gate be installed outdoors?

The standard model has an IP44 rating suitable for indoor installation. An upgraded IP65 waterproof version with enhanced sealing and weather resistance is optionally available for outdoor environments.

Q: Can passage width and cabinet dimensions be customized?

Yes, standard passage widths range from 500mm to 580mm, and custom cabinet sizes as well as widened passage channels can be customized to accommodate wheelchairs or large luggage requirements.
