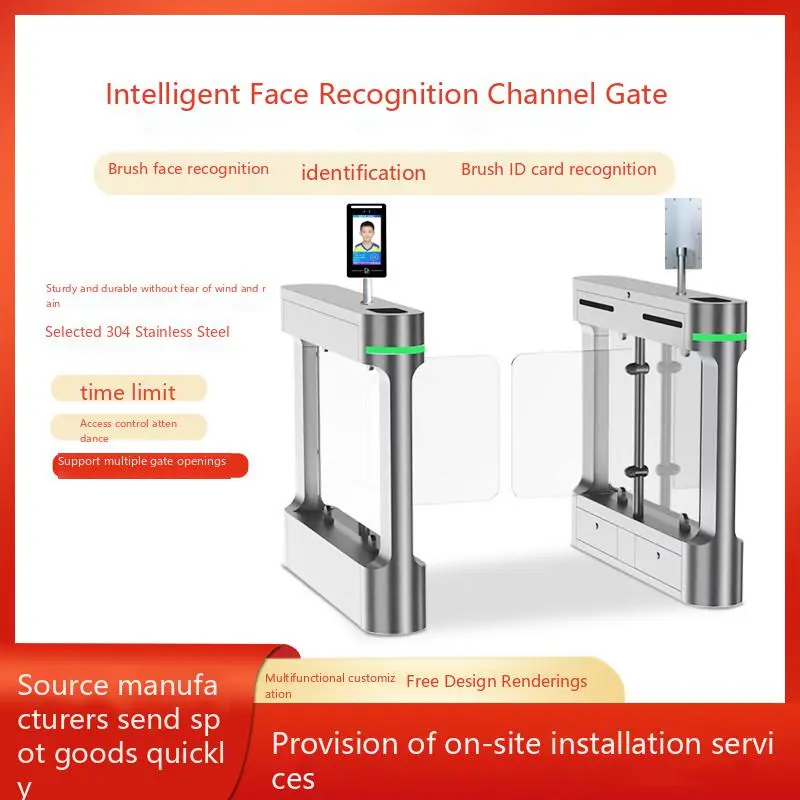

Durable Swing Gate Image Reference Manufacturer, Pricelist
Product Description

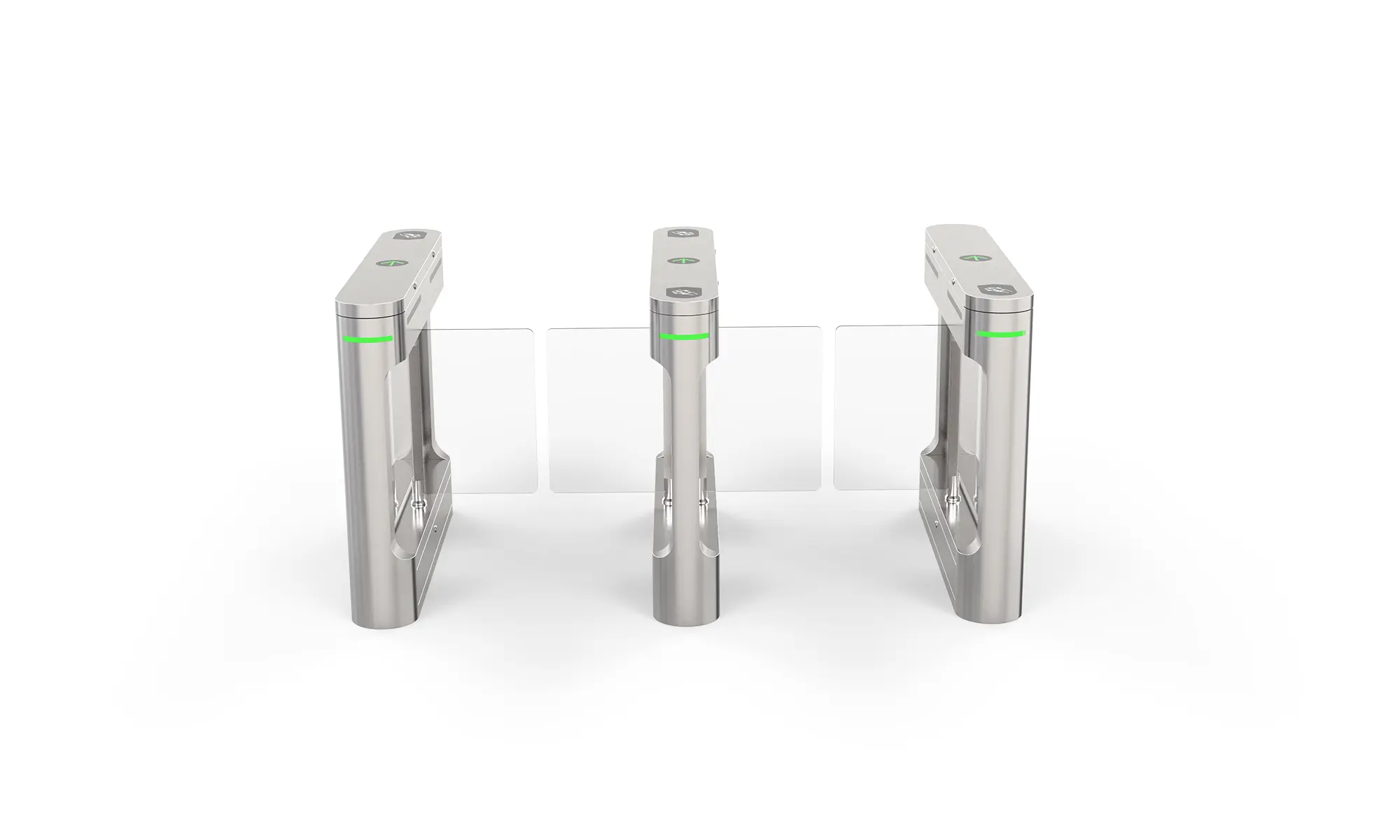

Main Features
Ultra-bright flashing directional indicator.
Reliable mechanism design, smooth and silent gate opening and closing action, no mechanical friction. Smooth operation and long service life.
Standard configuration includes 4 pairs of infrared sensors. Supports up to 18 sets of infrared beam detectors to prevent pedestrians from illegally entering the passage and ensure safe and smooth passage.
The swing gate has reliable safety protection measures, with a triple anti-pinch design. A. Infrared anti-pinch; B. Logical anti-pinch during passage; C. Obstruction detection return (other manufacturers generally do not have this function).
Main Features

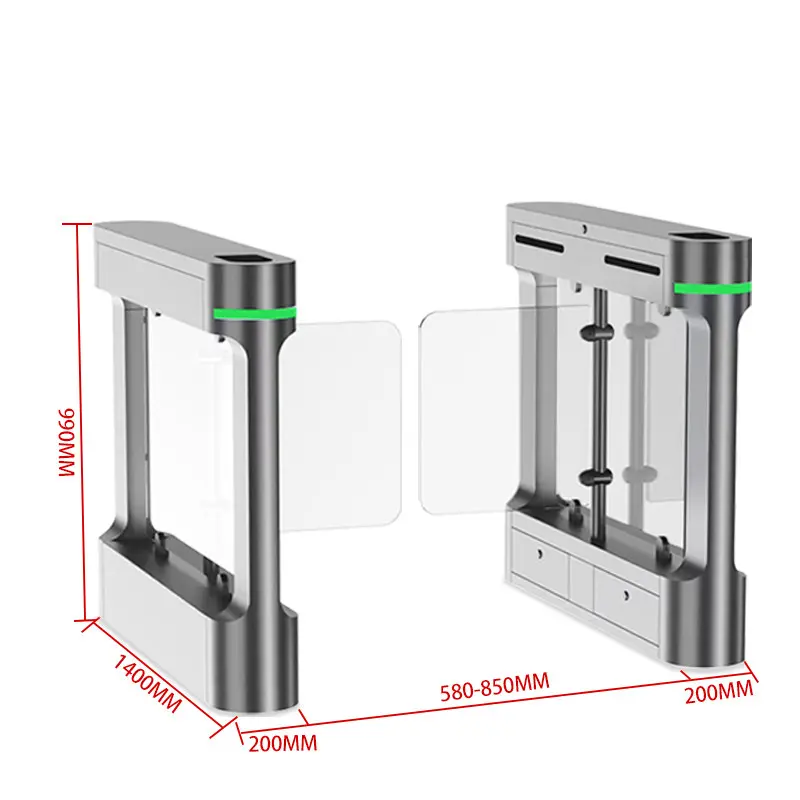

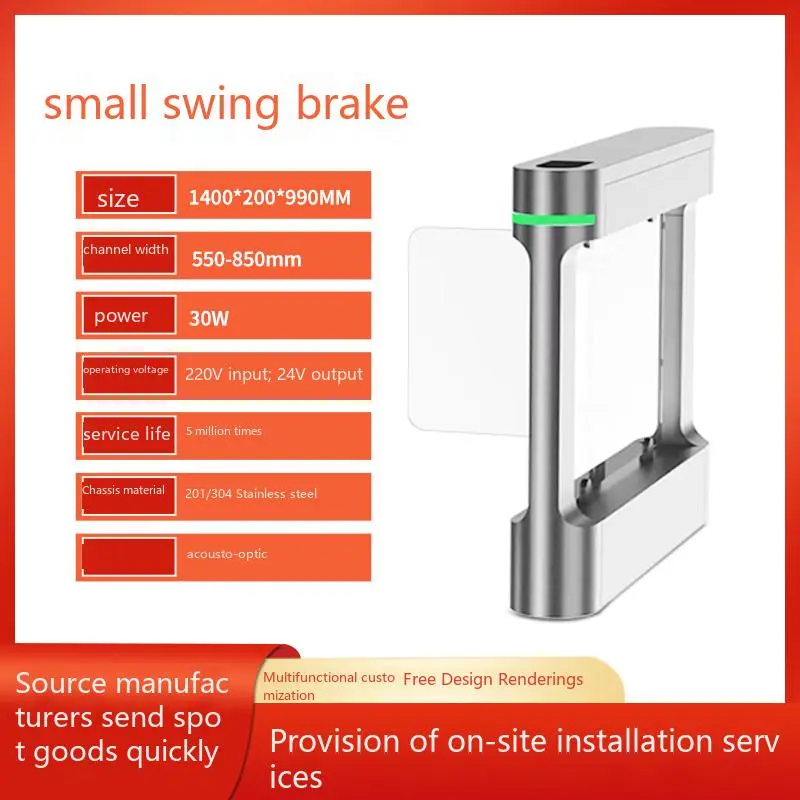

| Product size | 1200 * 200 * 980mm or customized |

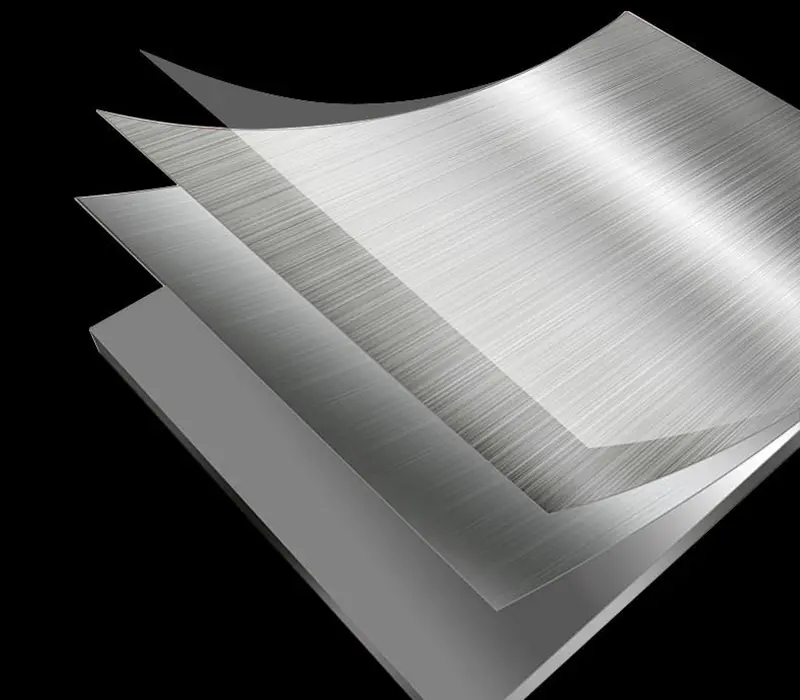

| Material | The body is made of SUS stainless steel material; |
| Power supply voltage | 220VAC±10%/15%, 50HZ±4%; |
| Drive motor | DC motor DC24V; |
| Drive Method | Digital; |
| Operating Environment | -25℃~+75℃; |
| Passage Speed | Maximum 25-60 people/minute; |
| Gate Opening/Closing Time | 0.4 seconds; |
| Channel width | 550-1400mm; |
| Mean Time Between Failures (MTBF) | 5 million cycles; |
| Relative Humidity | 5%-90% (non-condensing); |
| Waterproof and dustproof rating | Above IP32; |
Installation
It should be installed on a level concrete foundation by professionals following the installation manual to ensure the device is level and securely fixed. After installation, debugging is required to ensure smooth lifting and accurate identification.
Maintenance
The swing gate can automatically reset after being impacted, protecting the mechanism (mechanisms of other manufacturers are damaged after impact).
Employs advanced digital sensors, providing 720 signal monitoring points per motor revolution to meet the requirements for rapid motor start-up and stop (most other manufacturers use photoelectric switches).
The swing gate speed can be customized via debugging software. A maximum opening and closing speed of 0.3 seconds improves pedestrian passage speed (performance superior to other manufacturers).
The swing gate can automatically reset after being impacted, protecting the mechanism (mechanisms of other manufacturers are damaged after impact).
Employs advanced digital sensors, providing 720 signal monitoring points per motor revolution to meet the requirements for rapid motor start-up and stop (most other manufacturers use photoelectric switches).
The swing gate speed can be customized via debugging software. A maximum opening and closing speed of 0.3 seconds improves pedestrian passage speed (performance superior to other manufacturers).
The gate's operating angle can be customized via debugging software, changing the fixed and unadjustable hardware of other manufacturers.
All external lines to the turnstile's main control board are equipped with overvoltage protection measures, making the turnstile operation safer and more stable.
The gate's main control board uses a USB interface to communicate with the PC's debugging program, making on-site debugging and maintenance more convenient.
The turnstile's main control board provides powerful functional extensions, such as normally open signal input points and normally closed signal input points.
Supports real-time monitoring of equipment operating status and modification of operating parameters.
It can be connected to an external UPS uninterruptible power supply and has multiple modes to choose from in case of power failure, meeting the needs of various places.
The turnstile does not require batteries to achieve automatic opening after power failure, making it more environmentally friendly and safer. Other manufacturers use batteries whose power levels cannot be monitored, creating potential hazards, and batteries have a short lifespan.
Provides multiple selectable passage modes, which customers can choose according to their needs.
Frequently Asked Questions
What safety mechanisms prevent pedestrians from getting pinched?
The swing turnstile features a triple anti-pinch design: infrared anti-pinch, logical anti-pinch during passage, and obstruction detection return, effectively ensuring optimal pedestrian passage safety.
What happens if the turnstile experiences an accidental impact?
The swing gate can automatically reset after being impacted, which fully protects the internal mechanism from damage that commonly occurs in standard turnstiles.
How does the swing gate operate during a power failure?
The device achieves automatic gate opening upon power failure without relying on batteries, ensuring environmentally friendly and safe passage. It can also be integrated with an external UPS system.
Can the passage width and gate speed be customized?
Yes, the passage width supports a range of 550-1400mm, and the opening and closing speed can be fine-tuned via debugging software to a minimum of 0.3 seconds.
What are the requirements for turnstile installation?
The equipment must be installed on a level concrete foundation by qualified professionals, followed by proper software and hardware debugging to ensure horizontal alignment, firm mounting, and reliable performance.
