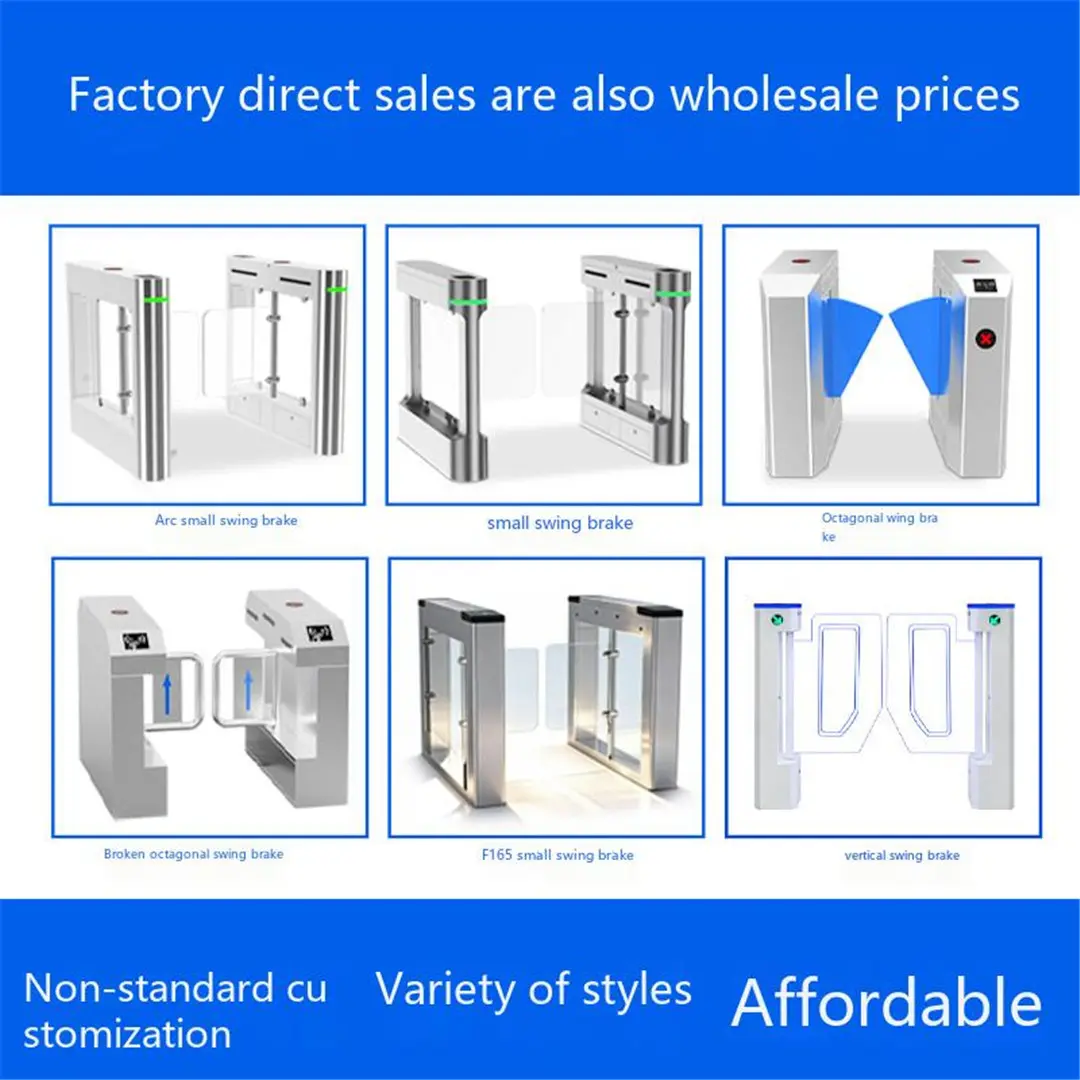

China Swing Gate Supplier, Quotation
Product Description
Main Features
Ultra-bright flashing directional indicator.
Reliable mechanism design, smooth and silent gate opening and closing action, no mechanical friction. Smooth operation and long service life.
Standard configuration includes 4 pairs of infrared sensors. Supports up to 18 sets of infrared beam detectors to prevent pedestrians from illegally entering the passage and ensure safe and smooth passage.
The swing gate features reliable safety protection measures, including a triple anti-pinch design: A) Infrared anti-pinch; B) Logical anti-pinch during passage; C) Obstruction detection and return (this function is generally not available from other manufacturers).
Technical Specifications
| Product size | 1200 * 200 * 980mm or customized |
| Material | The body is made of SUS stainless steel material |
| Power supply voltage | 220VAC±10%/15%, 50HZ±4% |
| Drive motor | DC motor DC24V |
| Drive Method | Digital |
| Operating Environment | -25℃~+75℃ |
| Passage Speed | Maximum 25-60 people/minute |
| Gate Opening/Closing Time | 0.4 seconds |
| Channel width | 550-1400mm |
| Mean Time Between Failures (MTBF) | 5 million cycles |
| Relative Humidity | 5%-90% (non-condensing) |
| Protection Rating | Waterproof and dustproof rating above IP32 |
Installation
Maintenance & Performance

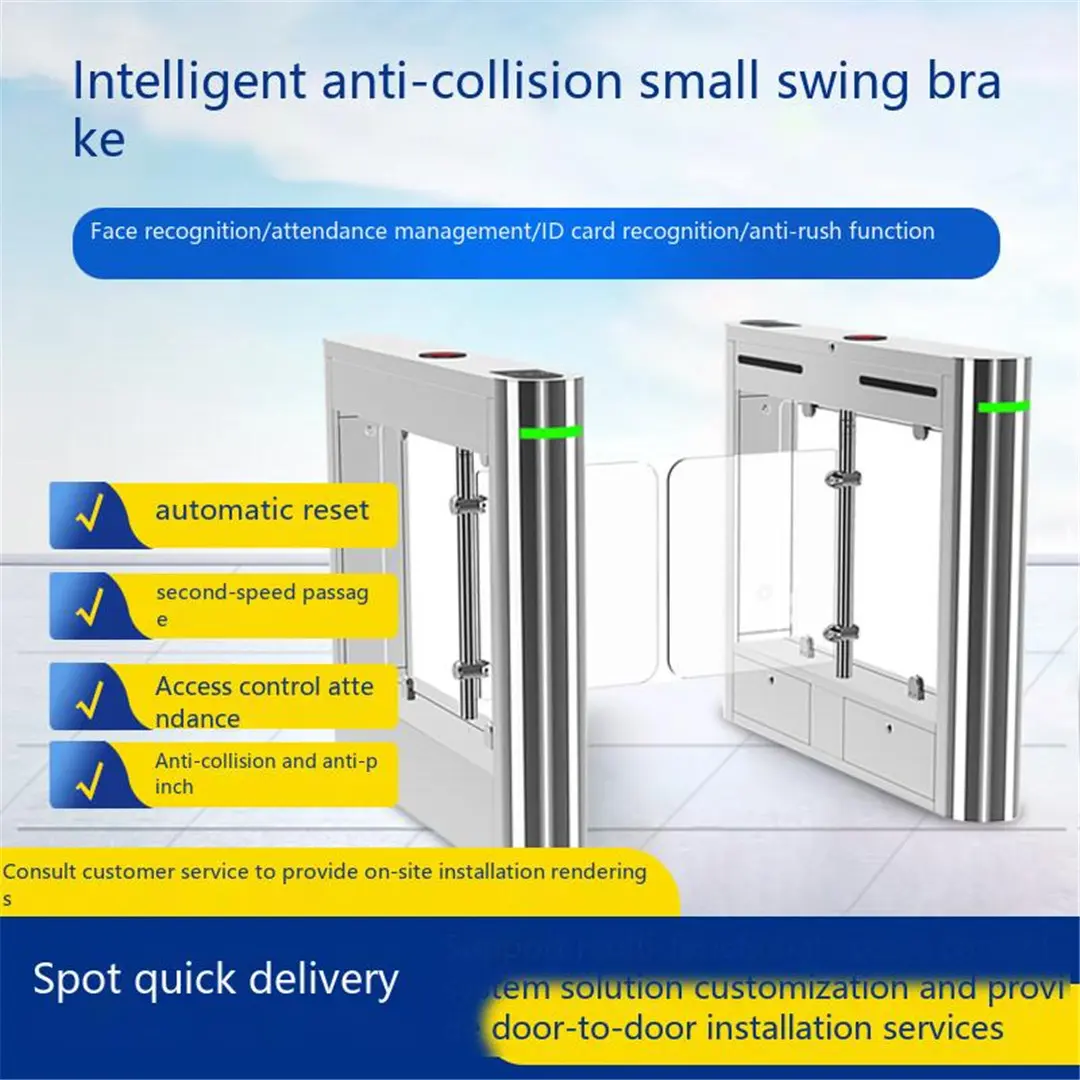

- The swing gate automatically resets after impact, protecting the mechanism (other manufacturers' mechanisms are damaged after impact).
- Employs advanced digital sensors, providing 720 signal monitoring points per motor revolution to meet the requirements for rapid motor start-up and stop (most other manufacturers use photoelectric switches).
- The swing gate speed can be customized via debugging software. A maximum opening and closing speed of 0.3 seconds improves personnel passage speed (performance superior to other manufacturers).
- Effective alarm reminder for unauthorized personnel entering the passage or pedestrians entering in the opposite direction.
- Adjustable photoelectric sensitivity effectively controls tailgating.
- Features fault self-diagnosis and alarm functions for convenient user maintenance and use.
- Meets fire safety design requirements and can automatically open the gate in case of abnormalities or emergencies.
- The swing gate automatically resets to its initial position upon power-on.
- The turnstile features power-on self-test and delayed start functions, accompanied by an alarm sound to prevent pedestrians from being trapped by the gate upon power-on.
- The turnstile's operating angle can be customized via debugging software, changing the fixed and unadjustable hardware of other manufacturers.
- All external lines to the turnstile's main control board are equipped with overvoltage protection measures, making the turnstile's operation safer and more stable.
- The gate's main control board uses a USB interface to communicate with the PC's debugging program, making on-site debugging and maintenance more convenient.
- The turnstile's main control board provides powerful functional extensions, such as normally open signal input points and normally closed signal input points.
- Supports real-time monitoring of equipment operating status and modification of operating parameters.
- It can be connected to an external UPS uninterruptible power supply and has multiple modes to choose from in case of power failure, meeting the needs of various places.
- The turnstile does not require a battery to achieve automatic opening upon power failure, making it more environmentally friendly and safer. Other manufacturers use batteries whose power levels cannot be monitored, creating potential hazards, and batteries have a short lifespan.
- Provides multiple selectable passage modes, which customers can choose according to their needs.
Frequently Asked Questions
How does the swing gate handle emergency situations or power failures?
The gate meets strict fire safety standards and will automatically open during emergencies or power interruptions without requiring a battery backup, ensuring clear and rapid evacuation paths.
What safety anti-pinch mechanisms are integrated into this equipment?
It utilizes a reliable triple anti-pinch protection system including infrared anti-pinch sensors, passage logical judgment, and obstruction detection with an automatic return function.
Can the passage width and gate speed be customized?
Yes, the channel width can be adapted from 550mm to 1400mm, and the opening/closing speed can be tailored via dedicated software up to 0.3 seconds per operation.
How does the turnstile prevent illegal entry and tailgating?
The system supports up to 18 pairs of infrared sensors combined with adjustable photoelectric sensitivity to accurately detect passage direction and prevent unauthorized tailgating.
What happens to the swing gate mechanism in the event of an accidental impact?
Unlike standard mechanisms that break under external force, our swing gate features an automatic reset mechanism after impact to maintain mechanical integrity and lower maintenance costs.
