Product Description
Main Features
Gate lifts in 0.3 seconds, preventing fare evasion
Standard 4m carbon fiber arm
Equipped with built-in traffic lights (red and green)
Thickened chassis, sturdy and durable
10 million cycles of trouble-free operation
Servo motor, powerful functionality
Specification Parameters
| Basic Parameters | |
| Operating Voltage | AC220V±10% |
| Operating Temperature | -20℃ to +60℃ |
| Relative Humidity | ≤95% without condensation (at room temperature) |
| Rated Power | ≤60W |
| Communication Method | TCP/IP, RS485 |
| Display Type | P4 red green LED module |
| Enclosure Protection Class | IP54 |
| Material and Craftsmanship | High-strength carbon steel, sheet metal spraying |
| Dimensions | 355*155*1370mm (Height * Width * Depth, excluding external camera) |
| Camera Parameters | |
| CPU | dual-core 900MHz processor + CNN hardware acceleration engine (0.5Tops) |
| Image Sensor | 1/2.8" starlight-level CMOS |
| Max Resolution | 1920(H)×1080(V) |
| Lowest Illumination | 0.01Lux (Color) |
| ISP | intelligent ISP, scene-adaptive |
| Data Output | H265\H264\MJPEG\intelligent detection structured data output |
| Standard Configuration | Standard 6mm prime lens |
| Comprehensive Capturing Recognition Rate | Comprehensive capturing rate ≥99.99%; comprehensive recognition rate ≥90% |
| License Plate Recognition Regions |
Poland, Germany, France, Brazil, Kenya, Ukraine, Indonesia, Vietnam, Denmark, Israel, Romania, Moldova, Azerbaijan, Switzerland, Slovakia, Netherlands, Serbia, Uzbekistan, Turkey, Kyrgyzstan, Urkaine, Greatbritain, Italy, Croatia ≥90% Monaco, Estonia, Czechrepublic, Portugal, Bulgaria, Luxembourg, Finland, Montenegro, Thailand, Slovenia, Hungary, Latvia, Russia, Kazakhstan, Lithuania, Norway, Belgium, Cyprus, Sweden, Georgia, Belarus, Spain ≥95% Malaysia, Singapore, Taiwan, Hongkong ≥98% |
| License Plate Recognition Function | White list of license plates, intelligent calibration |
| Network Interface | 1-channel 10/100Mbps adaptive RJ45 |
| Other Interfaces | IO output: 2-channel, IO input: 4-channel, RS485: 1-channel |
| USB | 1 USB Type-A interface (optional 4G module) |
| TF Card Slot | 1 TF card slot, supporting 512G at maximum |
| Service | Basic services, supporting various types of secondary development |
| Fill Light Parameters | |
| Number of LED Beads | 9 pieces |
| Maximum Power | 10W |
| Fill Light Control | Intelligent light sensitivity control, adjusts brightness based on ambient light intensity |
| Fill Light Distance | Illuminance greater than 50LUX at a distance of 5 meters |
| Adjustment Angle | Supported |
*Product technical specifications are subject to change without further notice.

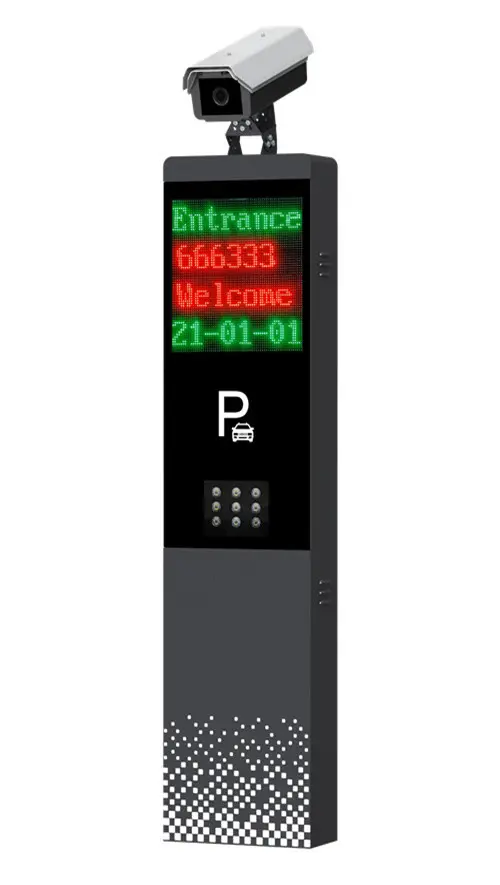

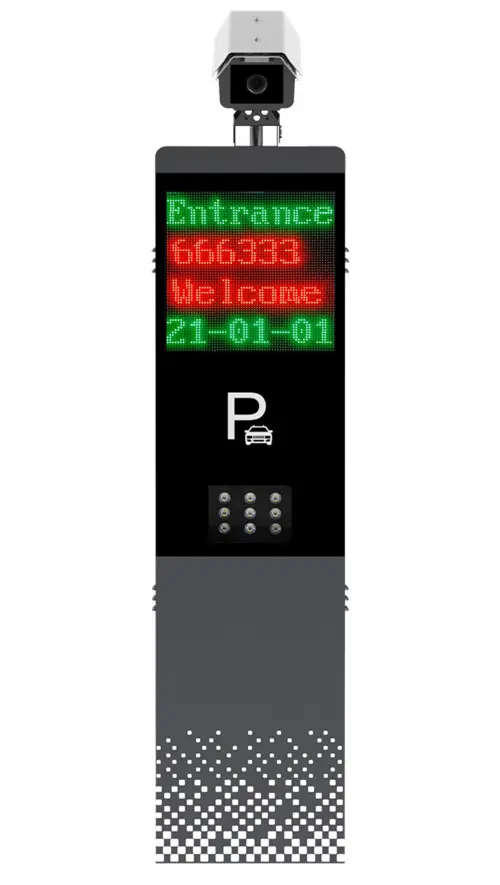

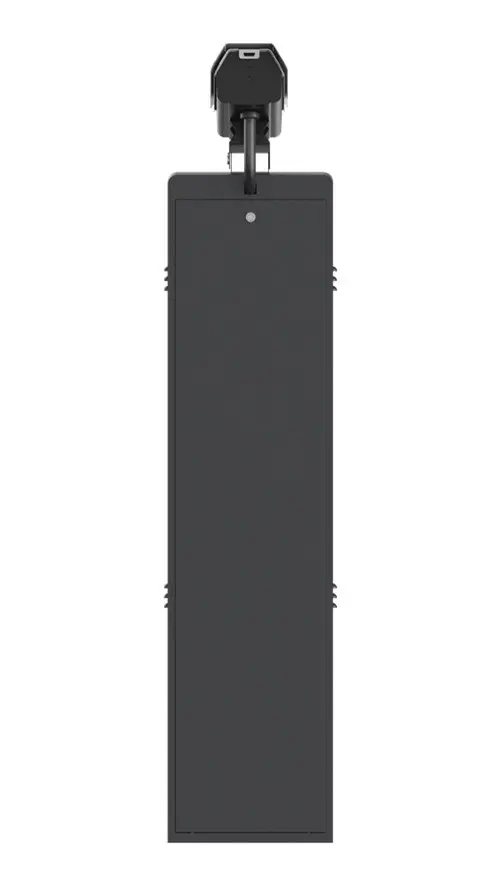

Structural Layout
Product Features
- Excellent hardware architecture and stable license plate recognition algorithm, achieving a comprehensive recognition rate of over 99.8%.
- 2 Megapixel starlight-level imaging with a dual-core processor for CNN acceleration.
- Intelligent imaging adjustment, automatically tracking and adapting to light changes, effectively handling challenging scenarios like backlight, frontlight, and ultra-low light. Fill lights are controlled based on image analysis algorithms for more precise illumination.

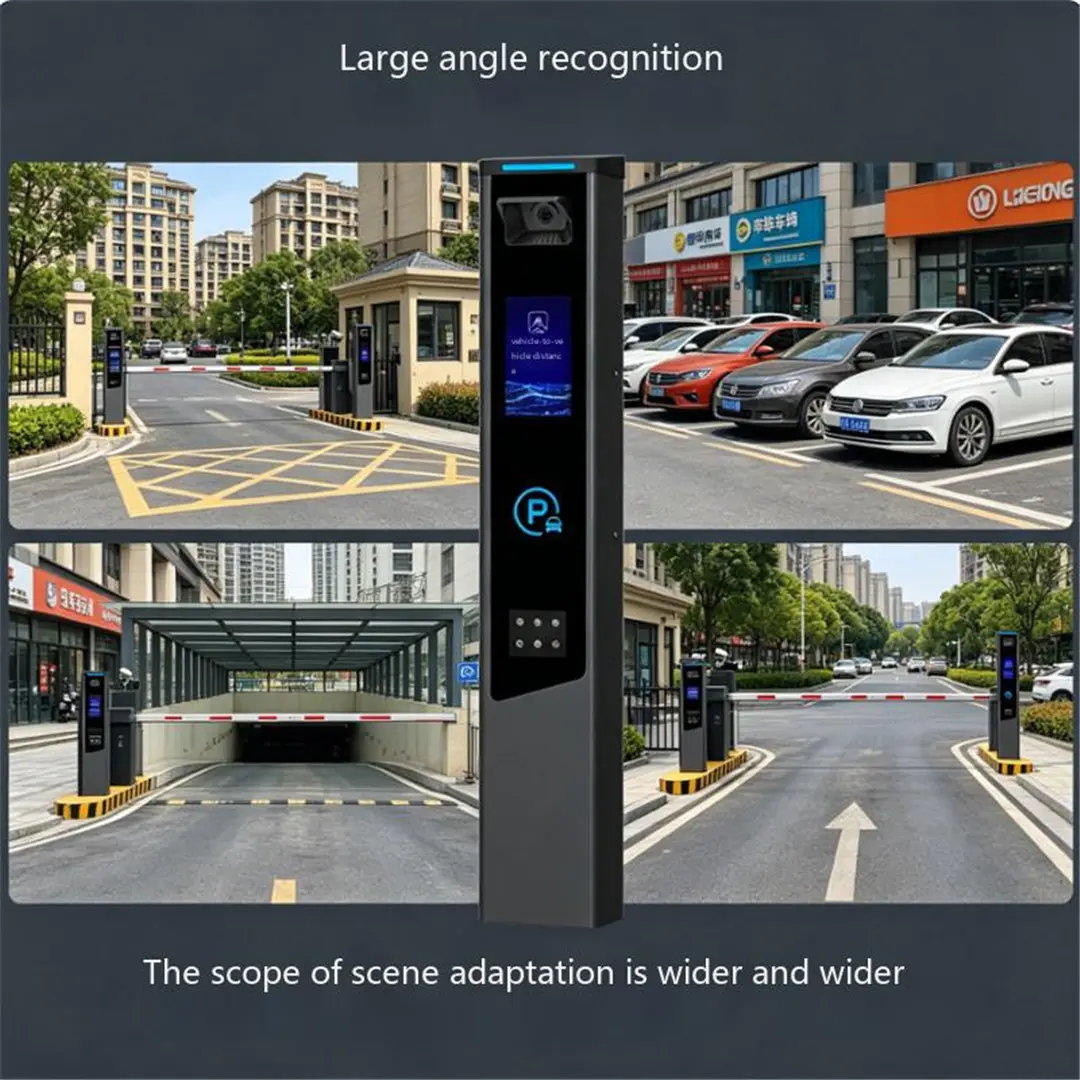

- Supports wide-angle recognition, expanding the range and adaptability of application scenarios.
- Video stream recognition ensures maximum recognition response speed and accuracy.

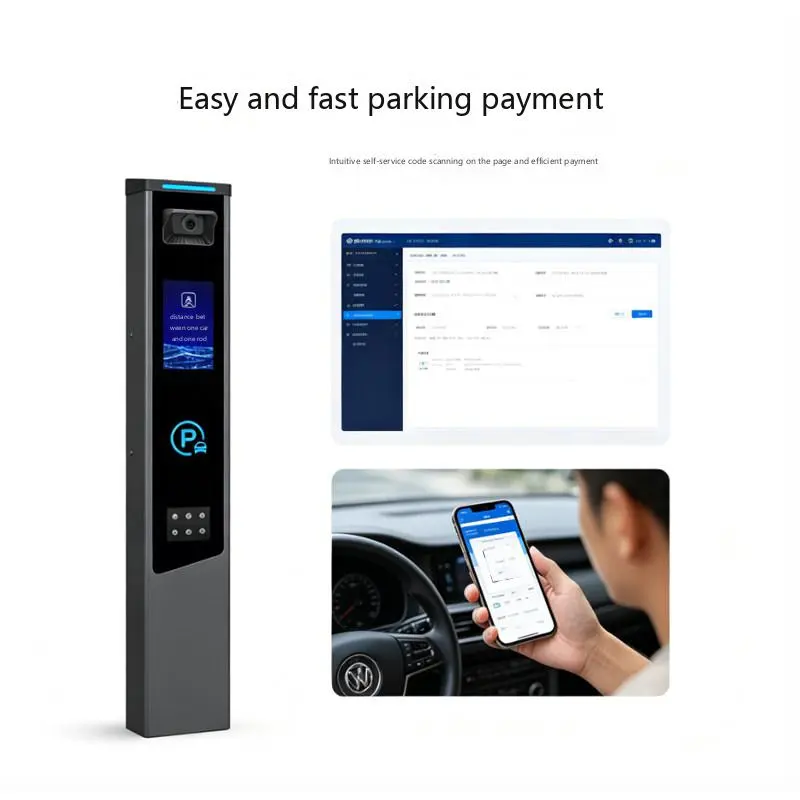

Product Features
- The all-in-one machine adopts a dark color scheme for a more unified and coordinated appearance.
- Equipped with the T312 display module driver board.
- Features an upper red and lower green outdoor high-brightness display module with a 4-line display mode.
- Humanized voice broadcast allows for customizable volume levels and time periods.
- Software-controlled customization of fill light brightness levels and on/off time periods.
- Simple installation and commissioning requiring only one Ethernet cable, one power cable, and one gate opening cable.
Frequently Asked Questions
How fast is the barrier gate lifting speed?
The barrier gate lifts in as fast as 0.3 seconds, which effectively manages traffic flow and prevents fare evasion.
What is the recognition accuracy of the license plate recognition camera?
The system achieves a comprehensive capturing rate of ≥99.99% and an overall recognition rate exceeding 99.8% under standard operating environments.
Can this barrier system handle extreme weather conditions?
Yes, it features an IP54 protection level enclosure made of high-strength carbon steel and operates reliably within a temperature range of -20℃ to +60℃.
Does the system support license plates from different countries?
Yes, the integrated camera supports recognition in dozens of regions across Europe, Asia, and South America with high recognition benchmarks (90% to 98%+).
How complex is the installation process?
Installation is streamlined and straightforward, requiring only one network cable, one power line, and one barrier control wire for commissioning.
Can the voice prompts and fill light be customized?
Yes, voice broadcast volume and active timeframes can be customized, and fill light brightness levels and operational schedules are fully controllable via software.
